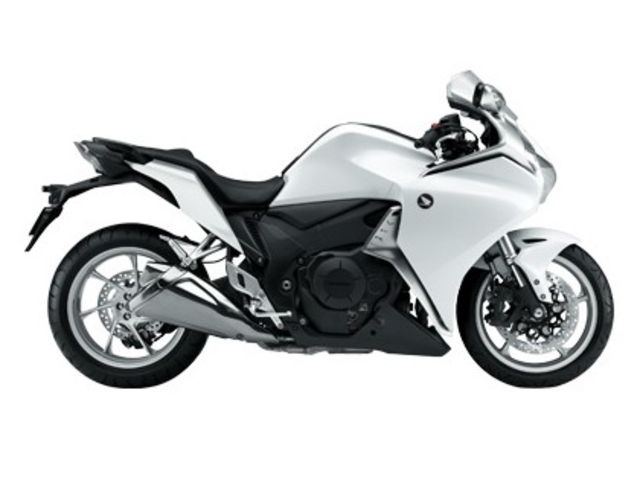

HONDA VFR1200X/F Cruise Kit

Description

Compatibility

• 2010-2017 VFR1200X 7th generation (Triple Switch)
• 2010-2017 VFR1200F 7th generation (Micro Toggle Switch Only)

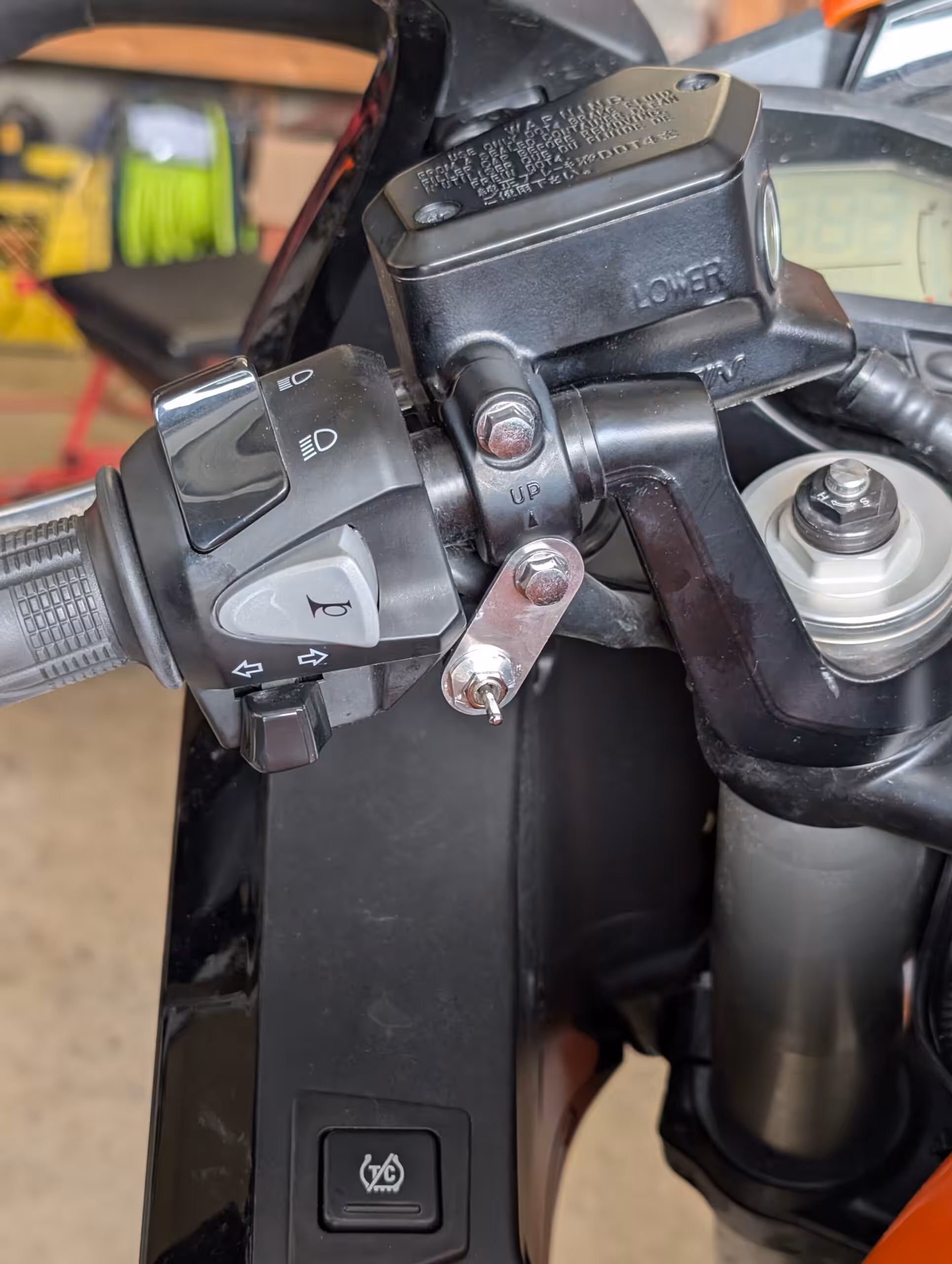

Micro Toggle Switch

A Small toggle switch for those looking at simple installs. 2 Function switch has Set and Cancel functions on momentary toggle. Includes 1/4″ mounting plate and dress nut. No RESUME function. 80cm standard length, Custom lengths on request.

Triple Button Switch

A 3 button switch for controlling the cruise functions is included. Fully watertight and durable. Mounts directly to standard 22mm handlebars with a fully opening bracket. This option provides 3 buttons.

• Resume / Increase
• Cancel
• SET/ Decrease

LED lights and other upgrade compatibility

This kit is not compatible with motion/deceleration based brake flashers.

This kit is compatible with brake flashers triggered by the pedal/lever.

This kit is compatible with aftermarket LED kits.

This kit is compatible with stock and aftermarket heated grips.

Cruise Stop Conditions

We know it’s paramount on motorbikes to quickly kill the cruise control in as many situations as possible. Our module will disengage cruise control for any one of the following conditions:

• Engine RPM signal exceeds 8000 RPM
• Front or Rear brake activated
• Throttle grip exceeds cruise control by 5%
• Any one of the required K-LINE packets are not updated within 1000 milliseconds

Configuration

The module has a weather tight USB-C connector for changing various settings such as speed increment size, PID gain, and throttle limits.

Diagnostic Port

This kit uses the diagnostic port of your bike. If you need diagnostics you can simple unplug our module and the kit will still run in bypass mode.

Install Difficulty

To install this kit you must get access to the fuel tank and airbox. Knowledge of getting to your air filter is required. About 1 – 2 hours install time with proper tools. T-harness will override the throttle signals and diagnostic connector will collect important speed data. This kit also requires a single T-Tap connection into the brake wire.

Manual /  Install

Click here for PDF Installation manual
