HONDA XL750 TransAlp 2025 Cruise Kit

Description

Compatibility

• 2025 XL750 TransAlp

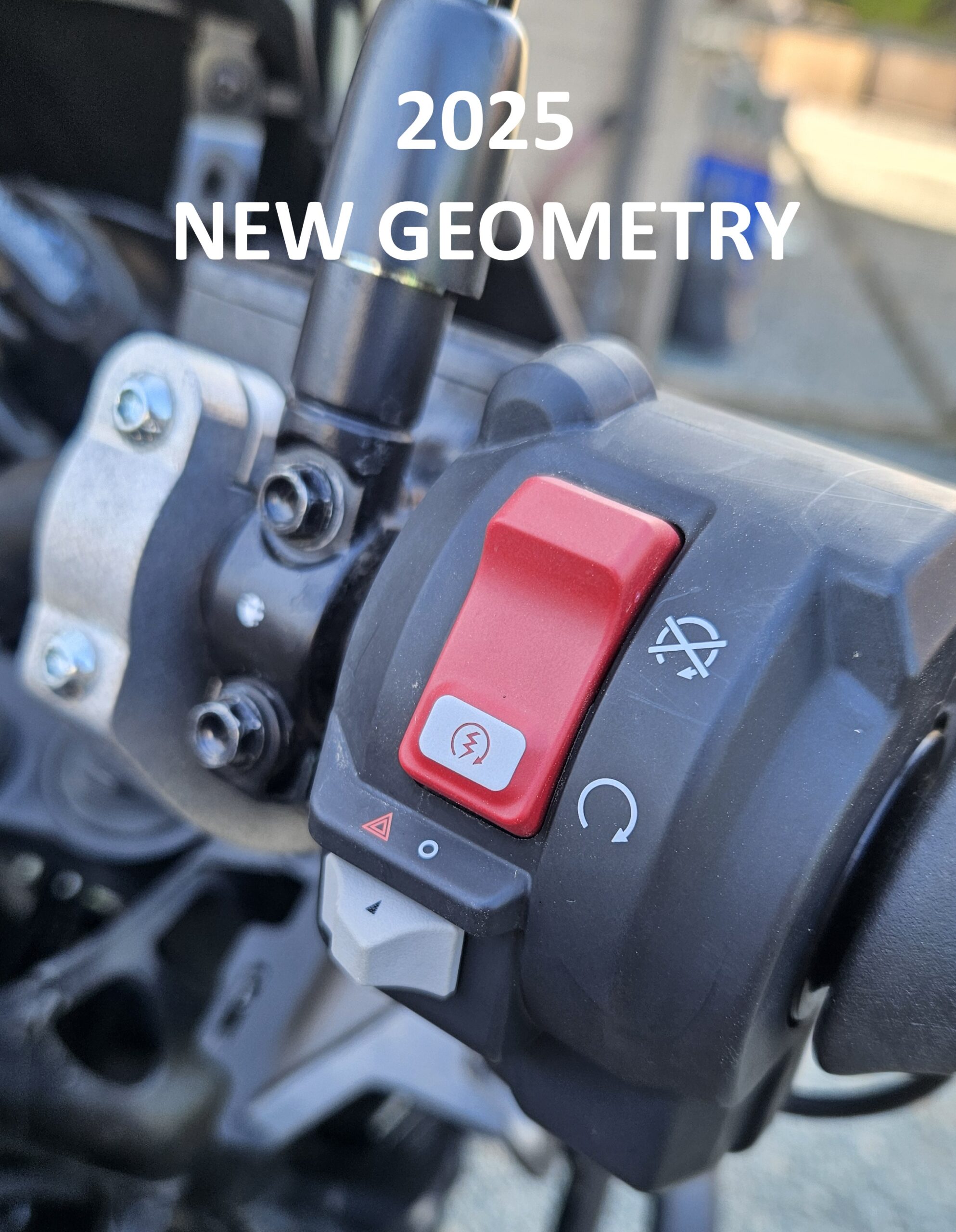

2025 models have new geometry switches. They can be identified with a Hazard switch on the right switch.

See here for 2023 and 2024 year models

Triple Button Switch

A 3 button switch for controlling the cruise functions is included. Fully watertight and durable. Mounts directly to standard 22mm handlebars with a fully opening bracket. This option provides 3 buttons.

• Resume / Increase
• Cancel
• SET/ Decrease

Custom Cluster Switch will not be offered for this model

Heated Grips, LED lights, and other upgrade compatibility

This kit may not compatible with motion/deceleration based brake flashers. AdMore Lighting has been verified compatible.

This kit is compatible with brake flashers triggered by the pedal/lever.

This kit is compatible with aftermarket LED kits.

This kit is compatible with stock and aftermarket heated grips.

Cruise Stop Conditions

We know it’s paramount on motorbikes to quickly kill the cruise control in as many situations as possible. Our module will disengage cruise control for any one of the following conditions:

• Engine RPM falls below 1000 or rises above 8000
• Front or Rear Brake Activated
• Throttle grip exceeds cruise control by 5%
• Any one of the required CANBUS packets are not updated within 1000 milliseconds
• Depressing clutch lever alone will not disengage cruise control

Configuration

The module has a weather tight USB-C connector for changing various settings such as speed increment size, PID gain, and throttle limits.

Diagnostic Port

This kit uses the diagnostic port of your bike. If you need diagnostics you can simply unplug our module and the kit will still run in bypass mode.

Install Difficulty

To install this kit you must get access to the fuel tank area. About 1 -2 hours install time with proper tools. T-harness will override the throttle signals and diagnostic connector will collect important speed data. This kit also requires a single T-Tap connection into the brake wire.

Manual /  Install

Click here for PDF Installation manual

External Videos

The Grand Shamrock Tour
