Description

This software package enables additional features in the ABS control unit and the ECU. Drive, MTC, and suspension modes are not saved, sadly.

No need to buy a second dongle anymore. Even better than a dongle, you can turn the software on and off from the cockpit with just the cruise switches.

Adventure Bikes

Allows for switching between ABS Road, ABS Offroad (Front Only), and OFF. Setting is saved between restarts

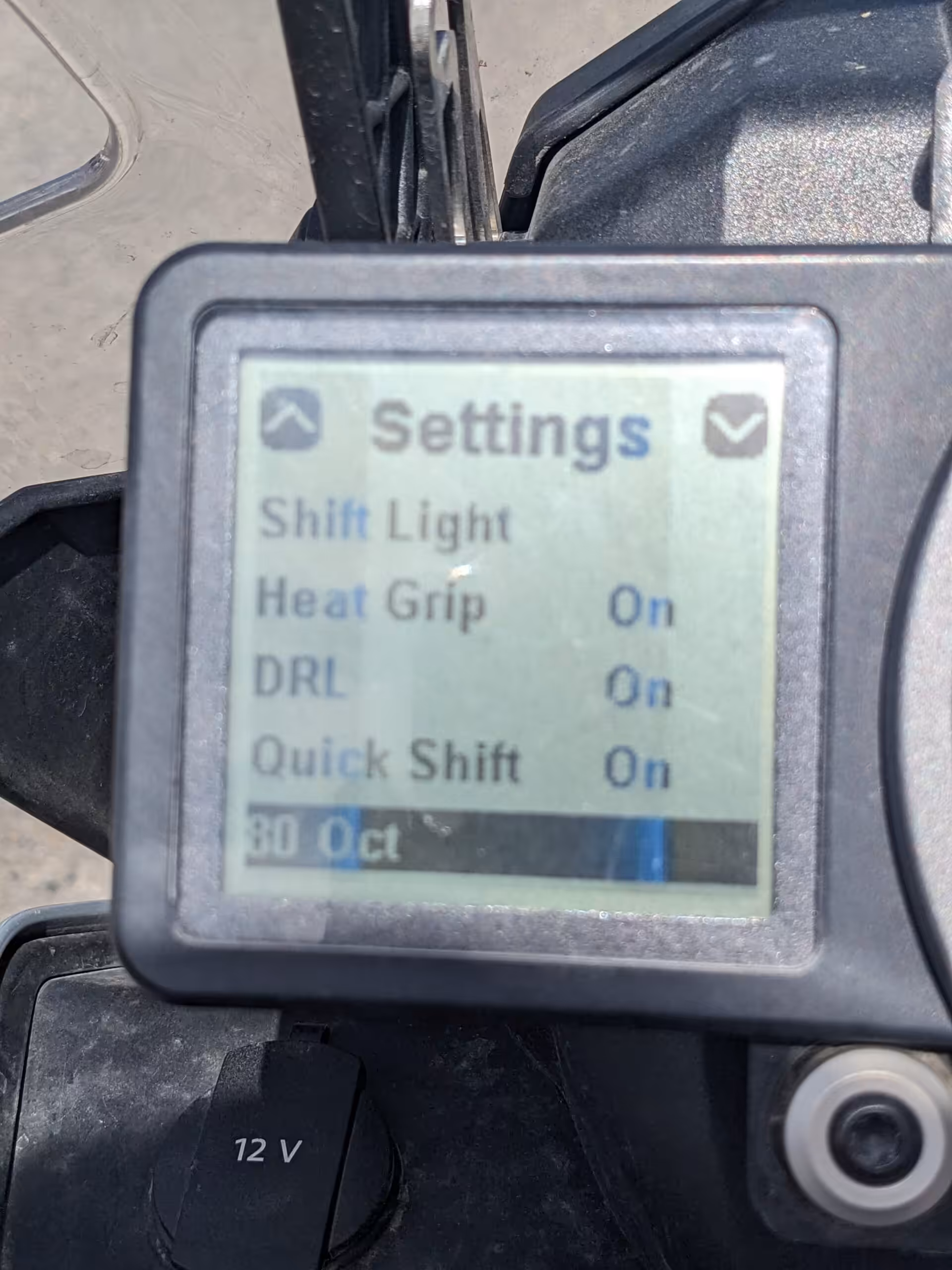

Additionally, a new “80 octane” setting will be available in the options menu (up to model year 2016). When enabled, reduced engine power for trips with lower fuel quality. MTC must be manually deactivated in the “MTC/ABS” menu. KTM recommends to only use this for 1 tank of fuel.

Enduro Bikes

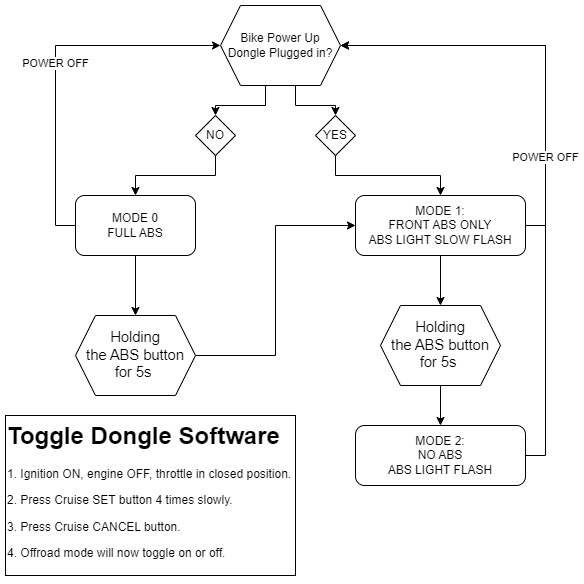

Press the ABS button on the speedometer to switch between the 2 ABS modes. ABS mode 1 is automatically activated when the dongle is plugged in.
– ABS mode 1 (the ABS bulb flashes every 5 s*):
The ABS function is only active on the front wheel (one-channel ABS). The rear wheel can lock at any time without ABS controlling the braking procedure.
– ABS mode 2 (the ABS bulb flashes evenly*):
The ABS function is switched off. The front wheel and rear wheel can lock at any time without the ABS controlling the braking proce-
dure.

* after the ABS self-test (vehicle must be moved by several meters)

Notes

The ‘OFFROAD PACK’ 60600980000 is additionally required for the 1050/1090 ADVENTURE to be able to use this software.

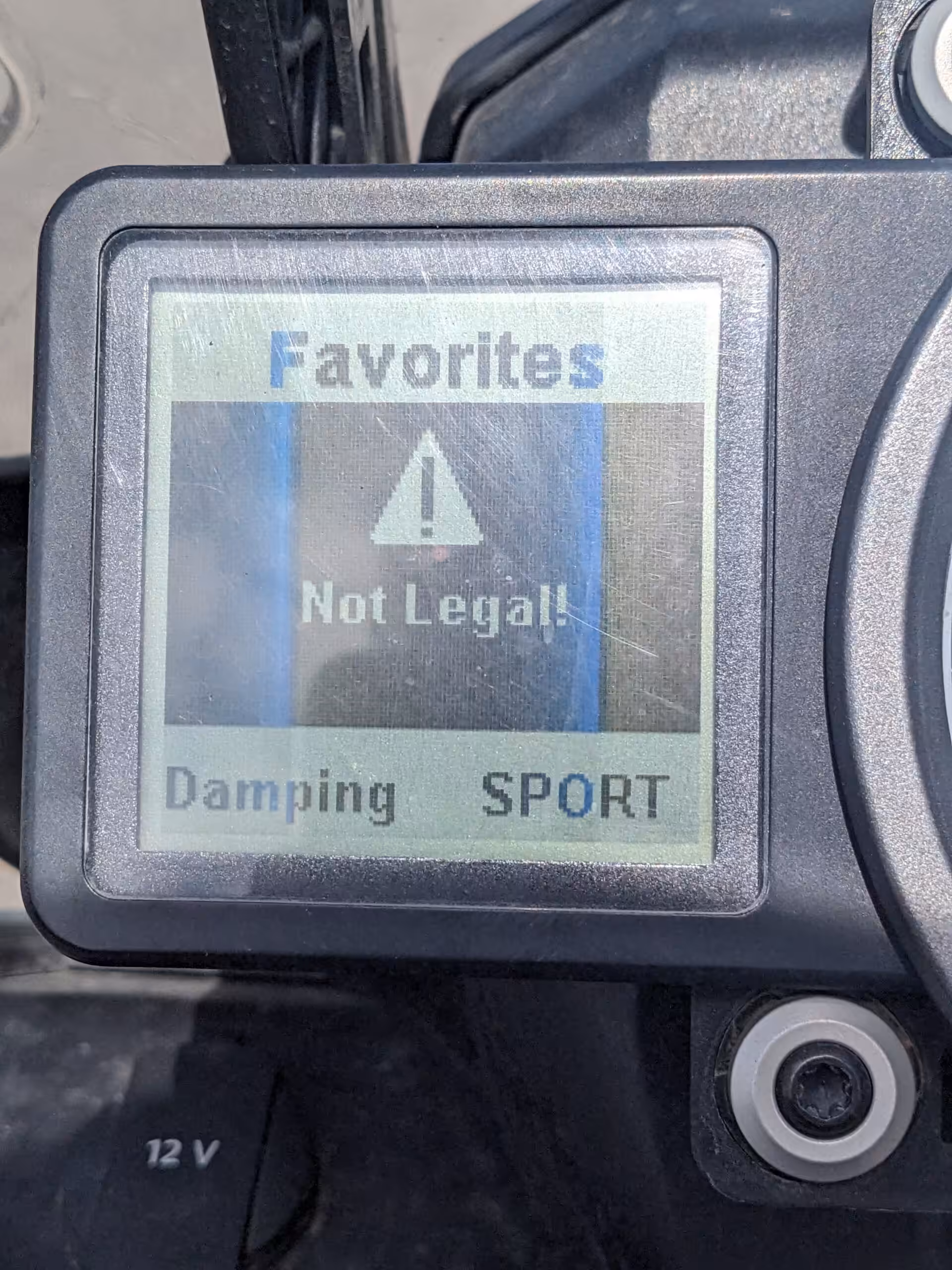

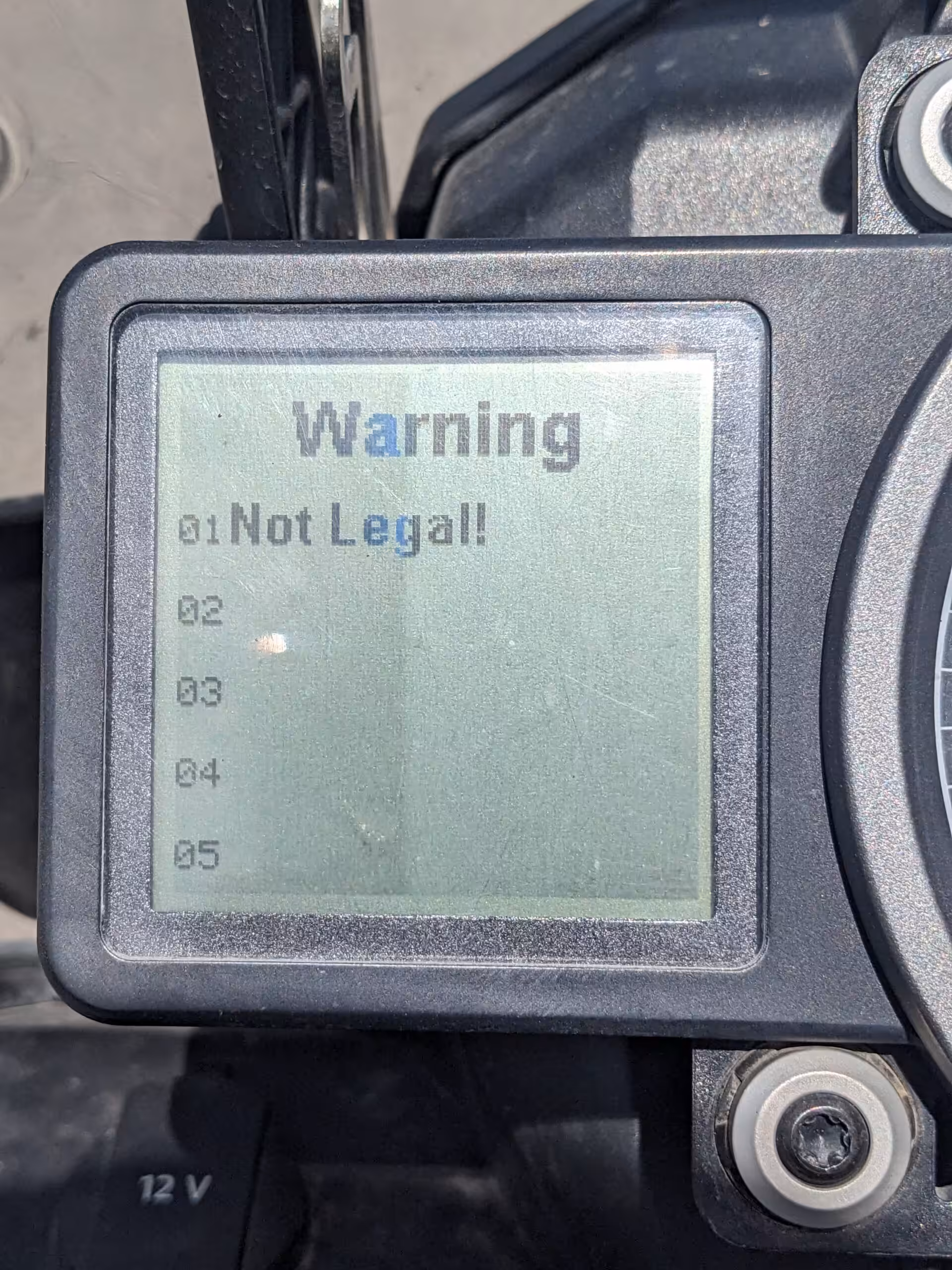

Your dash will now show ‘Illegal’ upon startup and all that is required upon startup from now on will be hitting the return key.

For Offroad use only.

FITMENT

• Husqvarna 701 (Euro 4)

• Gas Gas 700 (Euro 4)
• KTM 690 Duke 2018-2019
• KTM 690 Enduro R 2014-2023
• KTM 690 SMC R 2019-2023
• KTM 1050 Adventure R 2015-2016
• KTM 1090 Adventure R 2017-2019
• KTM 1190 Adventure 2013-2016
• KTM 1190 Adventure R 2013-2016
